Instrument Components

Optical slit apertures for spectroscopy, imaging components, patterning of thin films and foils, and micro-channels.

Polyimide Ablation exposing copper layer underneath

Oxygen Regulation flow hole 100 micron diameter

Brass pattern 70 microns wide

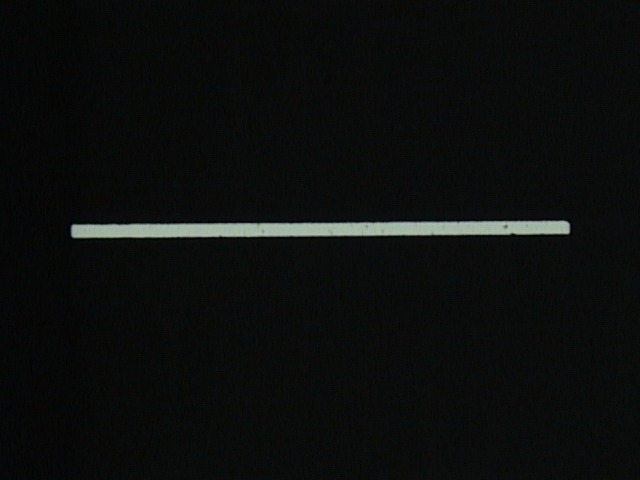

Slit 25 microns wide

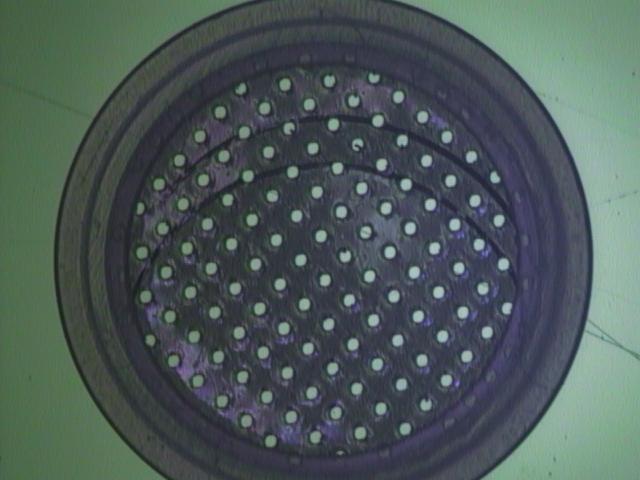

Stainless Steel Filter 100 micron holes

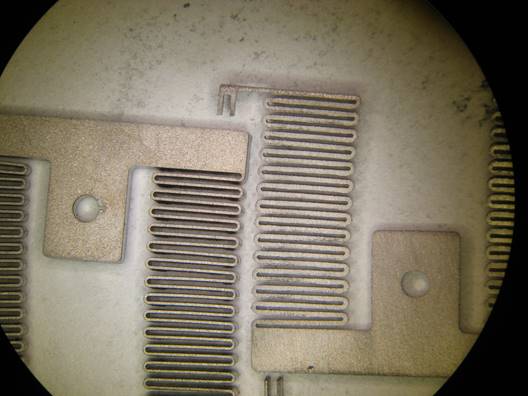

Spring Carriage 0.5 millimeter geometry coil pattern, titanium
